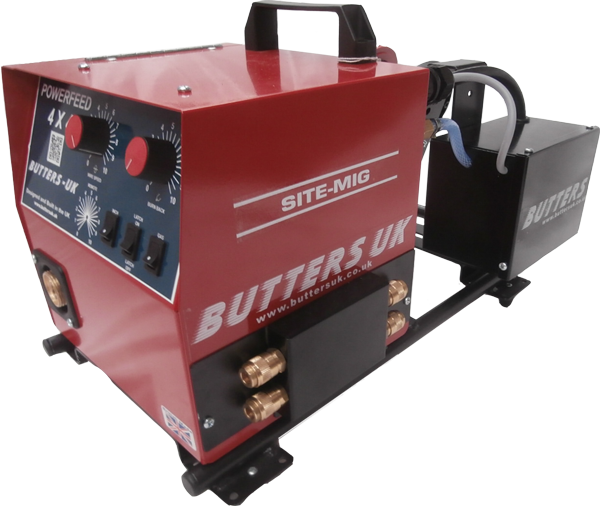

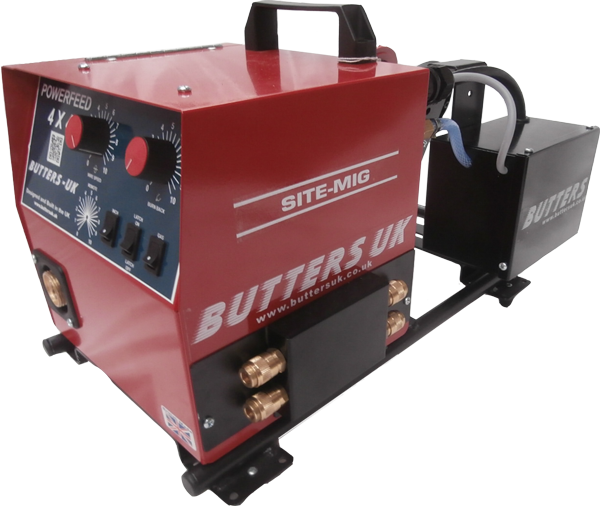

Site Power Feed

£1,152.00 inc tax

This Site Power Feed unit has been designed to work with welder generator power sources. With this unit it has the same case and frame as the others but has the 4 roll heavy duty drive system with a 24V 75watt motor. Wire speed is 0-24mpm. Front panel controls are wire speed, burnback, gas purge, inch, and latch. All drive rolls are gear driven and have two wire sizes on the drive roll. This unit is different by having a control box fitted. It works from the 110V aux take off, thus it is not affected by the OCV voltage varying the motor speed. The welding cable fits to the positive output on the generator. It can be used with gas or gasless wires. When the welding stops the wire is non live. The standard PCB which is used in the other feed units is also used in this unit. Built to last.
